TECHNICAL BULLETIN #4
Voicing

© 1993, 1994 The Piano Technicians Guild, Inc.
Return to Johnson Piano Service page
What is the difference between tuning and voicing?
What is good tone?
Does my piano need voicing?
How does a technician voice a piano?
Getting the most enjoyment from your piano

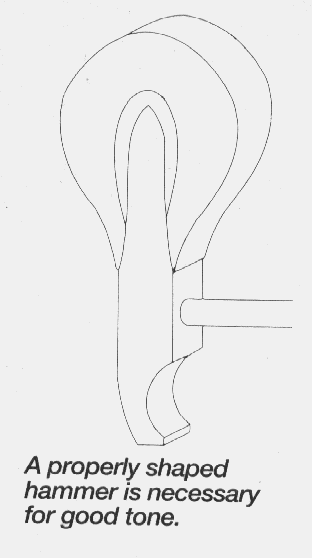

Picture of good hammer shape

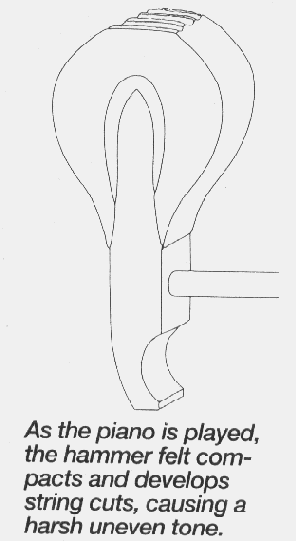

Picture of worn hammer shape

 Every piano has its own unique sound. One might be described as 'glassy,' another as 'warm'. One might have a 'full singing' tone, and yet another sounds 'thin.' Although the original design establishes the basic character of your piano's tone, your technician can modify it to better suit your taste or restore its original tone if it has deteriorated with age. The process of modifying a piano's tone is called voicing.


What is the difference between tuning and voicing?

Tuning is the adjustment of the tension of all of your piano's 220 (or more) strings to the correct pitch or frequency. This ensures that notes played in a musical interval (octaves, chords, etc.) will sound in harmony.

 Voicing is the adjustment of a piano's tone or quality of sound. Tone can be changed without affecting the pitch. For example, turning the bass or treble knobs on your stereo changes the tone but does not alter the notes the musician recorded. A skilled piano technician can voice a piano to change its tonal personality from mellow to bright or robust to delicate. The degree of change possible depends upon the piano's design and condition.

 Go to top


What is good tone?

Tone varies, even among pianos of the same make and model. No matter what its size or cost, any good piano should provide a wide range of tone, from soft and sweet to loud and bright. The tone should be even from the lowest to the highest notes. Most of all, it should sound musical.

 What does the perfect piano tone sound like? There is no single answer, because everyone's taste varies. Also, certain tonal characteristics are more suited to specific styles of music. A bright, lively tone might be best for jazz, whereas you might prefer a rich and dark sound for Beethoven's music. There are many different sizes and models of piano available in the market place; you chose your piano because it sounded good to you.

 But a piano's tone changes with use. As the hammers wear and compact, the tone often becomes too bright and harsh, robbing the pianist of the ability to produce a sweet sound. As parts wear, the regulation (adjustment of the mechanical parts that transmit motion from the fingers to the hammers) becomes uneven, and the pianist loses control over volume and tone. This is most noticeable in quiet playing. A delicate pianissimo passage becomes very difficult or impossible to play, and some keys may not sound at all if played very lightly.

Aging of the piano's strings and structure also can diminish its tone.

 Other factors that affect the sound you hear from your piano are:

Go to top


Does my piano need voicing?

Before deciding if a new piano needs voicing, make sure it is well-tuned and well-regulated. Then, play a wide variety of music on it. Most voicing procedures are long-lasting, so give yourself some time to explore the sound of a new instrument before deciding to change it.

 How often voicing is needed depends upon the piano's usage and its intended audience. Pianos in concert halls and recording studios often receive minor refinement of the voicing before each performance. A home piano may need some initial voicing to customize it to the owner's taste, then once every one to five years to maintain its tone.

 Your piano and your musical needs are unique -- your own schedule for periodic voicing is a matter for you and your technician to decide. To find out how voicing might improve the tone of your piano, ask for a demonstration on one or two notes.

 Go to top


How does a technician voice a piano?

 Before you or your technician can fully evaluate then tone of your piano, it must be well-tuned. Tuning is the first step in improving the sound of any piano and may actually provide the tone you desire. If the tone is still not satisfactory. Your technician will inspect the action, hammers and strings. If these components are severely worn, major repairs may be required before an improved tone is possible.

 Moderately worn hammers can be re-shaped with sandpaper to remove string grooves and restore their original rounded shape. Next, the hammers are aligned to strike each string squarely.

 Action regulation should be checked or adjusted. This ensures an even, powerful response from each key.

 If tuning, hammer shaping and regulation are correct, the tone probably will be balanced but still may be too bright or mellow for your taste. If so, your technician might recommend voicing the hammers.

 For a tone that is too loud, too bright or seems to die out too quickly, softening the hammers felt often is recommended. This is usually done by inserting needles into specific areas of the hammer to increase flexibility.

 For a tone that is too weak or too mellow, hardening of the hammer felt may be necessary. This is usually done by filing away soft outer layers of hammer felt or by applying a chemical hardening solution.

 Once the overall tone is correct, individual notes are voiced to make the tone as even as possible from one end of the keyboard to the other. In some pianos certain notes still may sound different from their neighbors, no matter how skillfully the technician voiced the piano. This most commonly occurs about an octave below middle C, where the strings change from steel wires wrapped with copper to plain steel. Such irregularities are a result of design compromises, and usually cannot be corrected by voicing.

 Go to top


Getting the most enjoyment from your piano

 One of your piano's most important assets is its tone. Properly voiced, your piano can offer you a rich palette of music expression, and inspire good practice habits in every member of your family. However, piano owners are not always aware that tone can be customized to their own tastes and room acoustics, and to correct for deterioration and age. If the only service your piano has received is tuning, the sound can likely be improved by voicing.

 Go to top


 The preceding article is a reprint of Technical Bulletin #4 published by the Piano Technicians Guild, Inc. It is provided on the Internet as a service to piano owners.

Piano Technicians Guild is an international organization of piano technicians. Registered Piano Technicians (RPTs) are those members of PTG who have passed a series of examinations on the maintenance, repair, and tuning of pianos.

For a copy of this or other PTG Bulletins and Pamphlets, or a list of RPT members in your area, contact Piano Technicians Guild, Inc., 3930 Washington, Kansas City, MO, 64111-2963.

Phone: (816) 753-7747 FAX: (816) 531-0070
